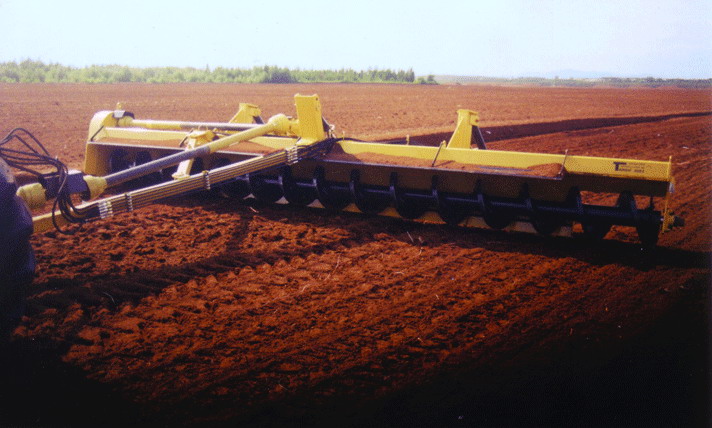

Leveling Auger

Land Clearing (TV-1036)
  Is used to finalize land clearing and to prepare peat
      moss harvest

  Removes stumps and roots over a 22' width and
      gathers them into a ridge

  Makes harvest easier by turning and ventilating moss
      up to 30" deep without compacting it

  Levels out peat bogs while giving them a draining
      slope of 15" over 50'



Adjustable draining slope
TECHNICAL INFORMATION
Overall Length : 23'5" Working Width 20' Working speed : 0,4 mile/h (0,6 km/h
Overall Width: 24'7" Screw Diameter : 36" Transmission : PTO 540 rpm
Overall Height : 7'6" Draining Exit : 35" Required HP : 95 HP - Crawler gear necessary for optimal results
Weight : 7 500 lbs Working Capacity : 25 acres/day

Parts and Labour Warranty :  12 months against mechanical breakage
Productivity Warranty :  50% increase within 12 months or your money back*

  The TV=1036 leveling auger is equipped with 4 cylinders, allowing to adjust its height as well as its working
      angle.  The pulling angle is 15°.

  Rear wheels swivel on their center, which allows the leveling auger to follow the ground more closely.

*some conditions apply

MAINTENANCE (TV-1018)

  Especially designed for frequent
     or daily use

  3 to 10 times mores efficient* in
      leveling peat bogs and eliminating
      holes and bumps

  Lighter*, therefore easier to ship
     and handle

  Preparation time required is only
      30 minutes






*than the TV-1036

TECHNICAL INFORMATION
Overall Length : 23'5" Working Width : 20' Working speed : 1.3 à 4 miles/h
(2 to 6 km/h)
Overall Width : 20' Screw Diameter : 18" Transmission: PTO 540 rpm
Overall Height : 4'6" Draining Exit : 35" Required HP : 70 HP - Crawler gear necessary for optimal results
Weight : 4 000 lbs Working Capacity : 75 à 250 acres/day

Parts and Labour Warranty :  12 months against mechanical breakage
Productivity Warranty :  50% increase within 12 months or your money back*

  The TV-1018 leveling auger is equipped with 3 cylinders, allowing to adjust its height as well as its working
      angle.  The pulling angle is 15°.

  Rear wheels swivel on their center, which allows the leveling auger to follow the ground more closely.

*some conditions apply

Free On-Site Demonstration at Your Peat Bog
Contact Us Today !
